This is a 1406 5700kV sensored brushless motor from Castle Creations. For more than a decade, Castle Creations has been providing award winning brushless sensorless motors to RC enthusiasts worldwide. In response to overwhelming requests from their customers, they have brought technological advancements together that will deliver unprecedented performance in the new sensored motor line.
Drivers in all applications demand clean starts when coming off the line. Crawler fans require high-precision low-speed control and torque for climbing, racers need precision and predictability, and dragsters don't have a millisecond to spare. To achieve all of these performance demands and more, Castle has integrated rotor position sensor technology with their improved high-power and high-efficiency motor designs. Through the use of these sensors, the position of the rotor is always known by the ESC. This eliminates the possibility of encountering cogging or inconsistency during startup. Users will experience precise throttle control, buttery smooth starts, plus the raw power and longer run times that Castle Creations motors are famous for.
Features:
Improved 4-pole 12-slot design boasts exceptional efficiency and reduced heat production
QuietSense technology shields the sensors from the motor coils and keeps your motor and ESC in sync at all times.
Use of a Flux Shield in conjunction with secondary Sense Magnets delivers even higher precision and more efficient startups
Optimized design eliminates the need for mechanical timing adjustments
The sensor alignment method delivers uniform timing and torque in both directions, automatically
Rebuildable design allows users to replace front end bell/bearing assembly or rotor/shaft assembly
ROAR standard sensor port and labeled connections
Updated modern and sleek design; looks as cool as it performs!
Specs:
Input Voltage Range: 2-3S LiPo
Kv: 5700
Max. RPM: 100,000
Length: 49.5mm
Diameter: 36mm
Weight (w/wires): 202g / 7.1oz
Shaft Size: Length: 15mm
Diameter: 1/8" (3.17mm)
Mounting Hole Specifications: M3 @ 25mm
Cooling Fan: Optional - coming soon!

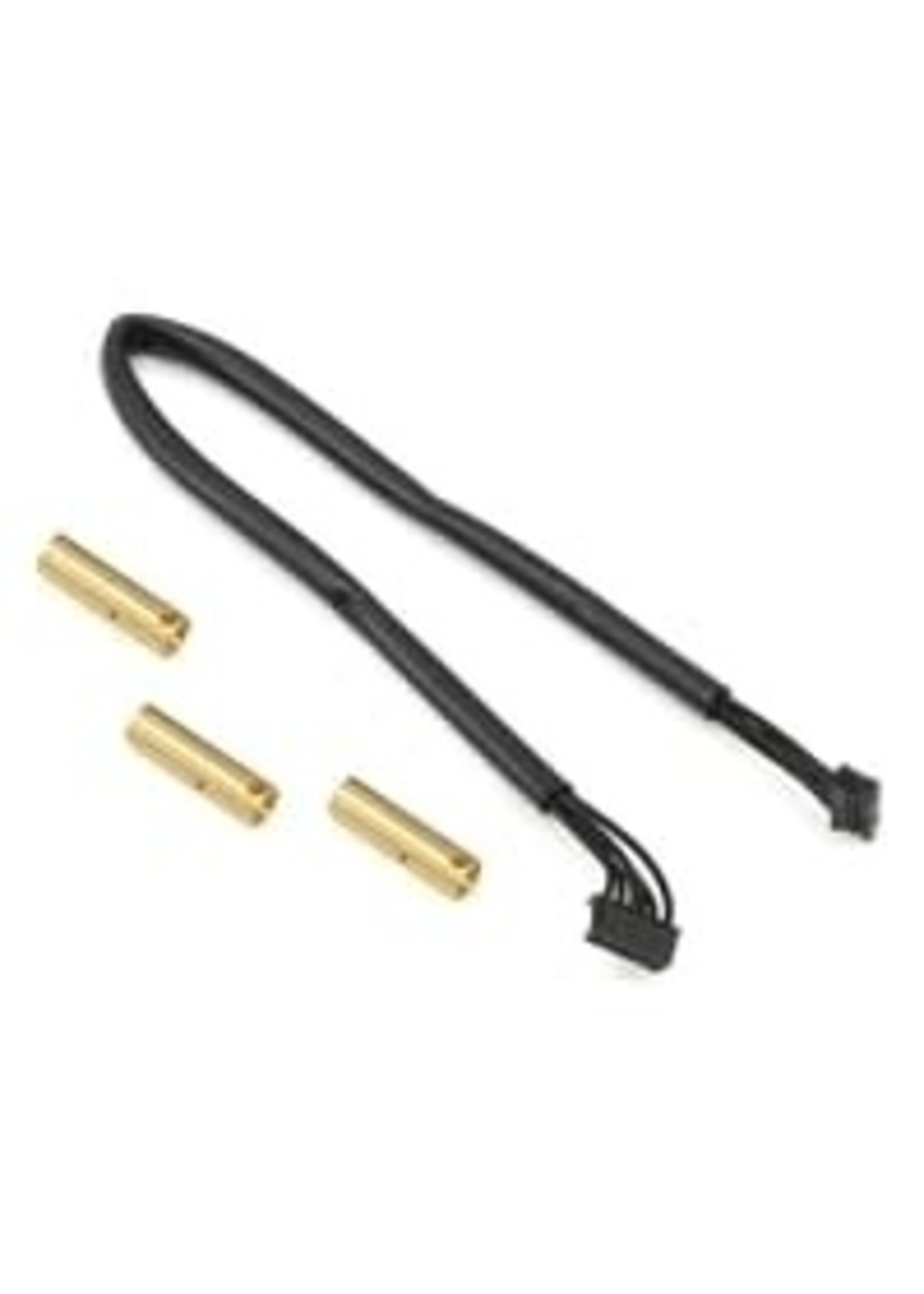

Connectors: 4mm male Castle Bullet Connectors
Items Needed for Operation: Compatible Electronic Speed Control (ESC)
Application Guidelines: 1:10 scale 2WD SCT, on-road touring, stadium truck and buggies
Recommended ESC(s): Mamba Max Pro
Max. Recommended Vehicle Weight: 2WD SCT up to 5lbs, stadium trucks, buggies, and on-road vehicles up to 4lbs
