Specifications:

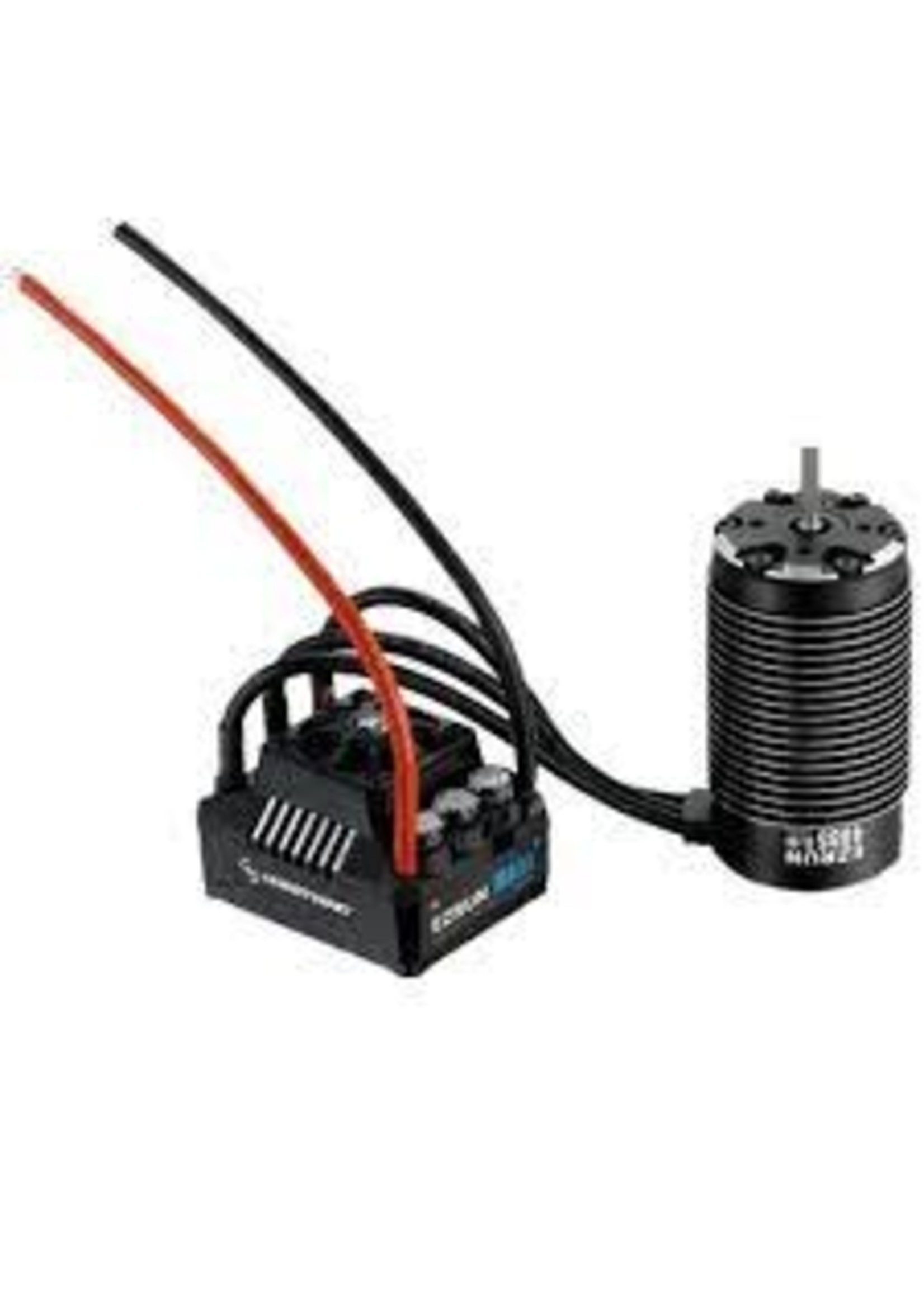

Motor:
Model: 4985SL-1650KV
Pole: 4
KV (No-load): 1650KV
Resistance: 0.0053 Ω
Current (No-load): 5.4 A
Max. Output Power: 5700 W
Current at the point of M.O.P: 160 A
Motor Diamter: 49mm
Motor Length: 86.5mm
Shaft Diameter: 5.0mm
Shaft Length: 21.5mm
LiPo Cells: 3-6
Weight: 587g (20.71oz)
Applications: 1/6th & 1/7th RC Vehicles
ESC:
Continuous Current: 160A
Peak Current:
Peak Current:
Peak Current: 1,050A
Motor Type: Sensorless Brushless Motor
Applications: 1/6th Touring Car, Buggy, Truggy and Truck
Motor Limit: With 6S LiPo/18S NiMH: KV ≤1500 (5892 size motor); With 8S LiPo/24S NiMH: KV ≤1200 (5892 size motor)
LiPo/NiMH Cells: 9-24S NiMH, 3-8S LiPo
BEC Output: 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)
Cooling Fan: Powered by the stable BEC voltage of 6V/7.2V
Connectors: Input End: None, Output End: Female 6.5mm Gold Connectors (pre-soldered onto the PCB of the speed controller)
Size (LxWxH): 70x56x46.5mm
Weight: 240g
Programming Port: FAN /PRG Port
