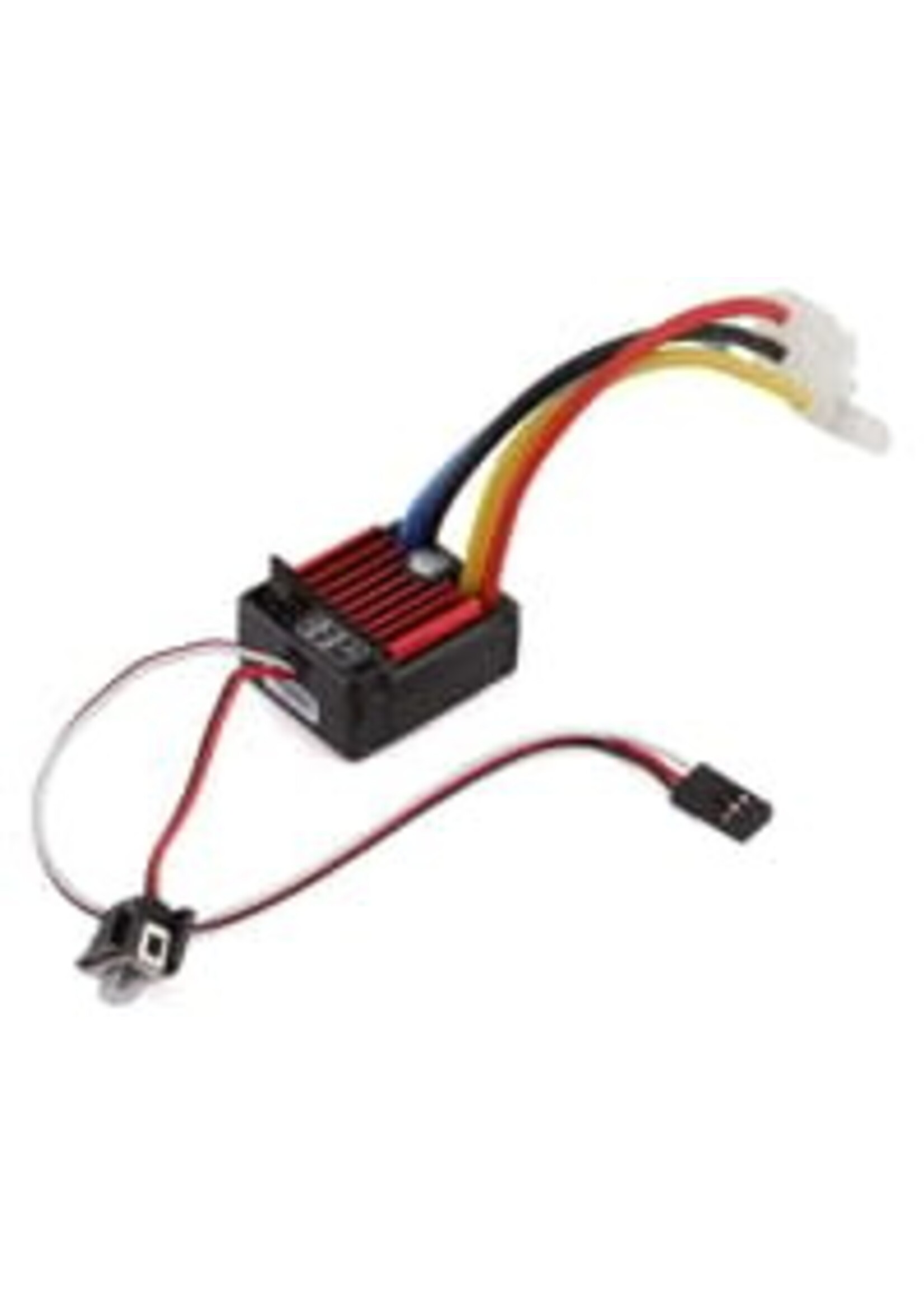

Hobbywing Quicrun 1060 1/10 Brushed ESC
Features:
- Water-proof and dust-proof, suitable for all weather races.
- Small size, with built-in capacitor module.
- Fwd/Rev/Br running mode fits various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).
- Great current endurance capability.
- Great built-in BEC output capacity.
- Automatic throttle range calibration, easy to use.
- ESC parameters are easy to set with jumpers.
- Multiple protections:
- Over Voltage Protection
- Low voltage cut-off protection for battery
- Over-heating protection
- Throttle signal loss protection
Specifications:
Fwd Cont. Current /Peak Current/ Resistance: 60A/360A/0.001?
Rev Cont. Current /Peak Current/ Resistance: 30A/180A/0.002?
Motor Type Supported: Brushed Motor
Application: 1:10 Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank
Suitable Battery: 2-3S LiPo, 6-9 cell NiMH
Brushed Motor Limit:
2S LiPo or 6 cell NiMH: 540 or 550 Size Motor: ?12T, Or RPM<30000 @7.2V
3S LiPo or 9 cell NiMH: 540 or 550 Size Motor: ?18T, Or RPM< 20000 @7.2V
BEC Output: 2A/5V (Switch Mode)
PWM Frequency: 1KHz
Size/ Weight: 35.5(L)*32.18(W)*18(H) / 39g
Running Modes: Forward/Reverse/Brake, Forward/Brake, Forward/Reverse
Cooling Fan: No need
