Features:
CNC machined and lightened hardened steel construction
Replaces stock nylon spur gear
Rugged 0.8 Module/32pitch teeth for total reliability on brushless power
Aluminum pinion sleeve to allow for either 1/8 inch or 5mm motor shafts
Black oxide coated gear for durability and corrosion resistance
Red anodized countersunk aluminum washers
High strength hardware

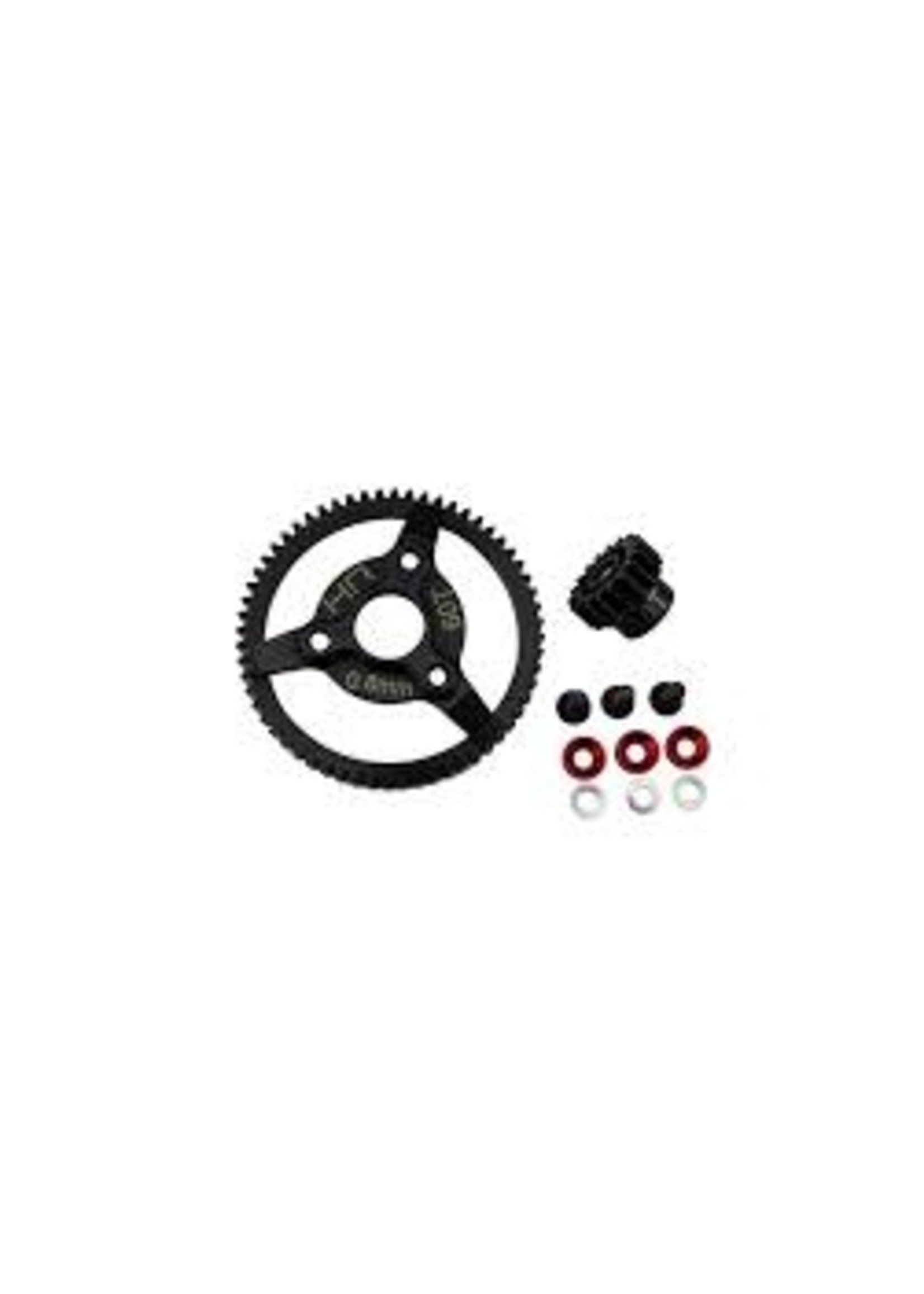

Includes:
(1) 18 tooth 32 pitch (0.8 Mod) pinion gear
(1) 60 tooth 32 pitch (0.8 Mod) spur gear
(3) mounting screws
(3) red anodized countersunk washers
(1) pinion adapter sleeve
(3) washers (use as needed underneath countersunk washers to prevent screw ends from protruding too far through spur backing plate)
Specifications:
Number of Teeth: 18T/60T
Gear Pitch: 32 pitch (0.8 module)
Mounting Holes: 3
Tooth Face width: ~5mm
NOTES:
Consider using Hot Racing motor lock plate TE18L06 for secure motor mounting
Motor should no way exceed 180F. ESC should not exceed 160F. Excessive temperatures will shorten the life of the motor and ESC.
