Pushing over 650 oz-in of stump-pulling torque and .13 speed at 7.4V, the 370TBL will move heavy 2.2 tires with ease - no matter how much weight you put in them.
All this power means nothing without durability. By combining this incredible power with a specialized gasket system, the 370TBL is waterproof up to 1-meter and will stand up to anything mother nature can throw at it. A full steel gear train, 25T output shaft and full aluminum machined heat sink case make the 370TBL extremely tough. The 370TBL delivers the excessive power that crawlers demand - with durability and reliability that make it a must have servo for crawlers that expect the most from their rigs.

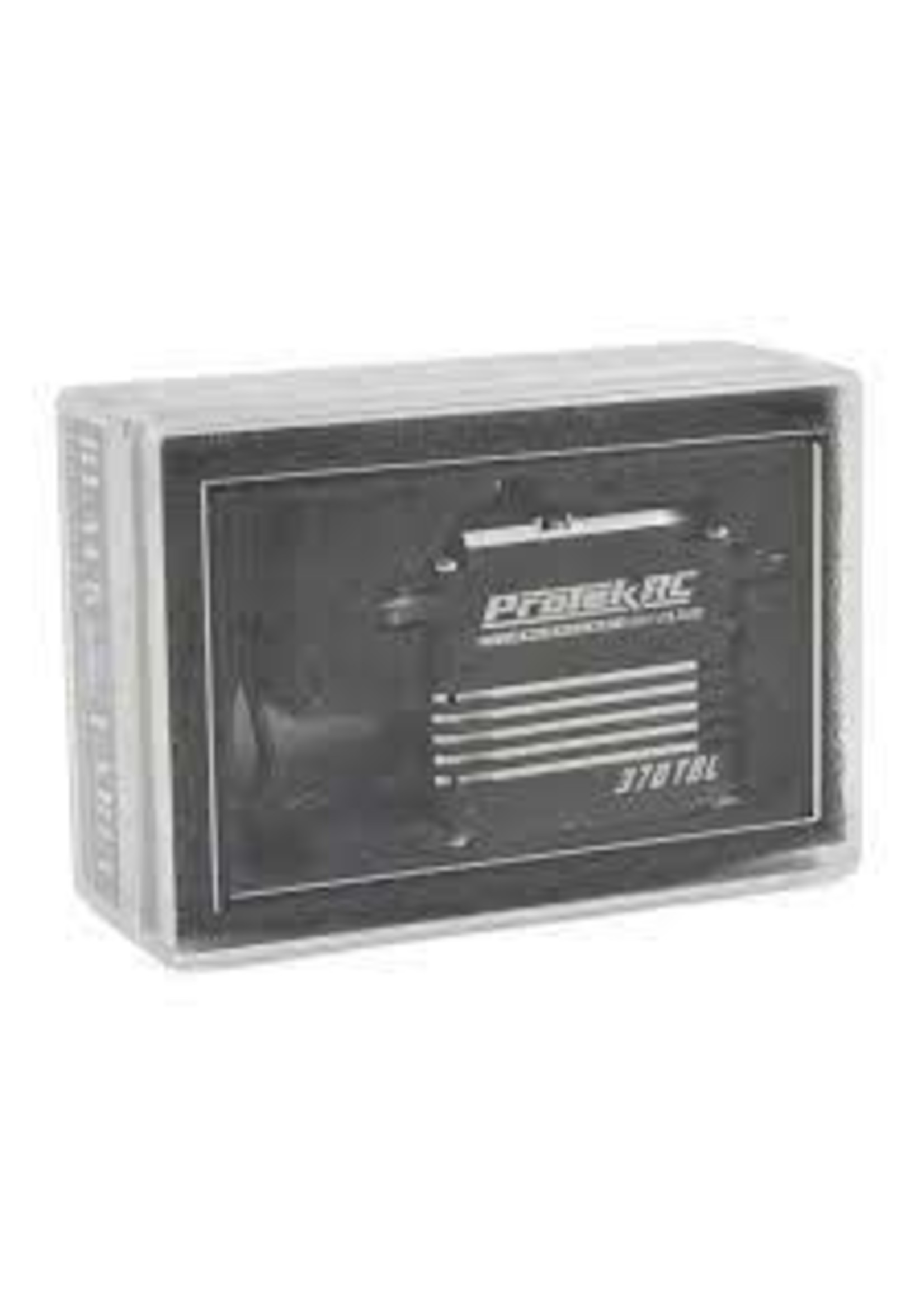

ProTek R/C 370TBL Waterproof High Torque HV Crawler Servo
NOTE:
During testing, we found that some Tactic receivers included with the SCX10 II RTR do not communicate well with high performance servos, and may not function properly with this servo.
For best results, and the peak performance, we recommend you power this servo with a BEC.
If you experience glitching or poor performance while using a Futaba transmitter, you must turn off BLS mode. BLS mode is only compatible with Futaba BLS type servos.
Warranty Info Icon small
Features:
Ideal for any 1.9 to 2.2 Crawler application
Waterproof up to 1 meter
600 oz-in of torque @ 6.0V, and .135 transit speed
650 oz-in of torque @ 7.4V, and .13 transit speed
Brushless motor
High voltage circuitry
Full steel gears
Full aluminum black anodized heat sink case
Dual ball bearings
280mm servo lead
Servo Model
370TBL
Recommended Application 1/10 to 1/8 Scale Crawler
Operating Voltage 4.8V - 7.4V
Operating Temperature 14° to 140° F (-10 to +60° C)
Operating Speed @ 6.0V 0.135/60° sec
Operating Speed @ 7.4V
0.13/60° sec
Dynamic Torque @ 6.0V
600 oz-in (43.2 kg-cm)
Dynamic Torque @ 7.4V
650 oz-in (46.8 kg-cm)
Stall Current @ 6.0V
6A
Stall Current @ 7.4V
6.4A
Motor Type
Brushless Digital
Output Shaft 25 Tooth
Gears Steel
Weight 72g
Pulse/Frequency
1520?s / 333hz
Dimensions 40x20x37.8mm
Length (Bottom to Mount)
28.4mm
NOTE: Requires a servo extension lead for a drop-in TRX-4 fit.
