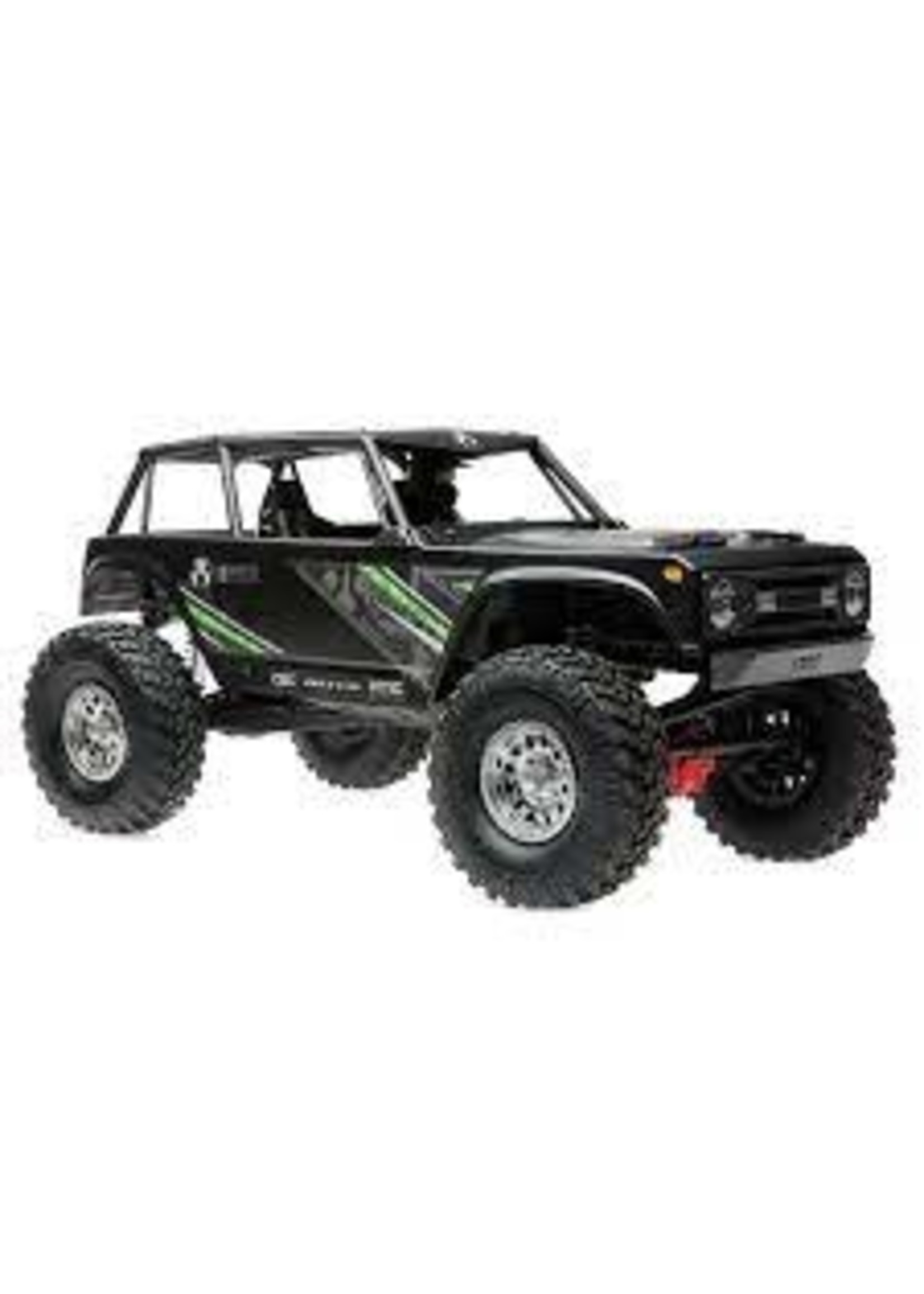

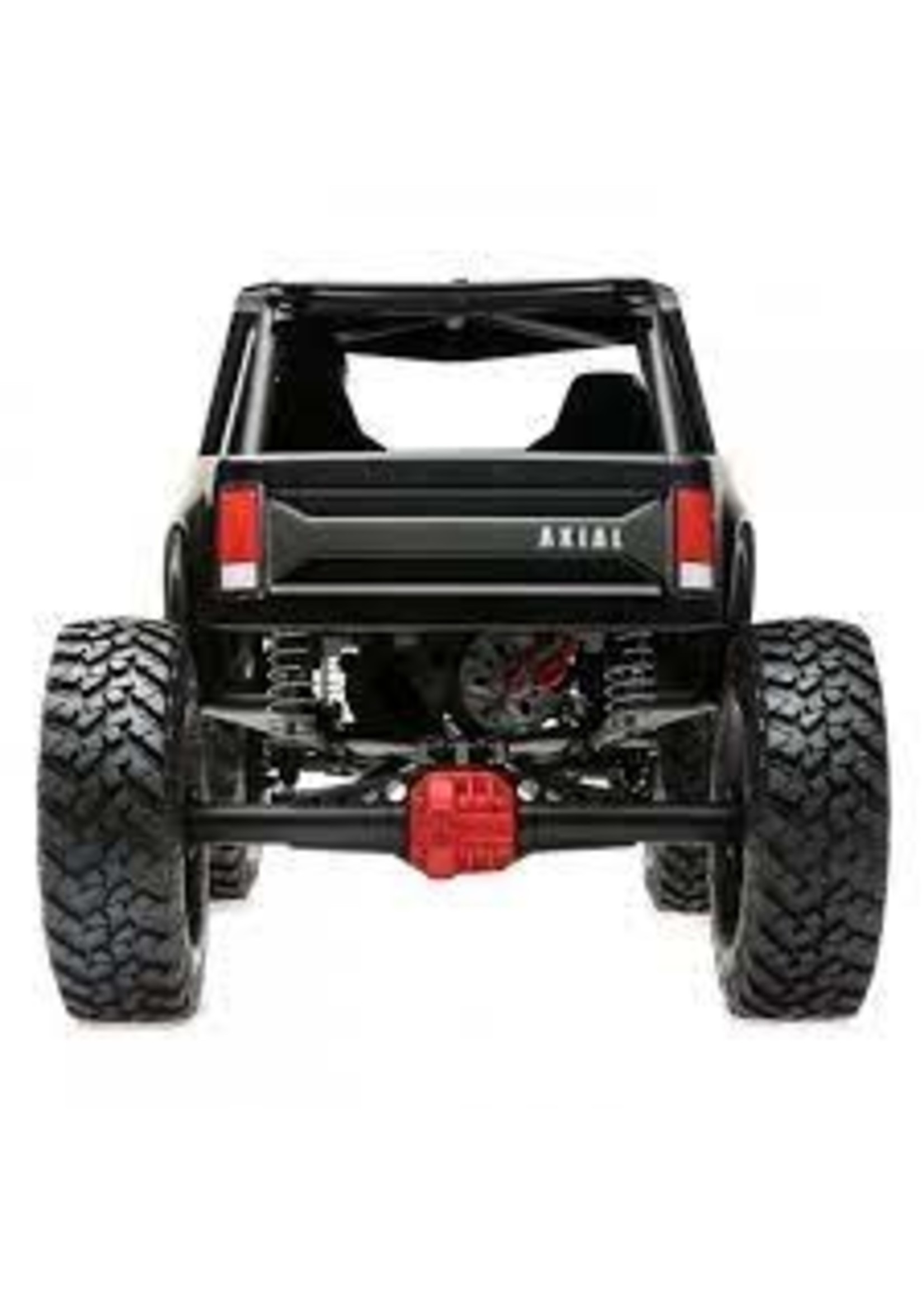

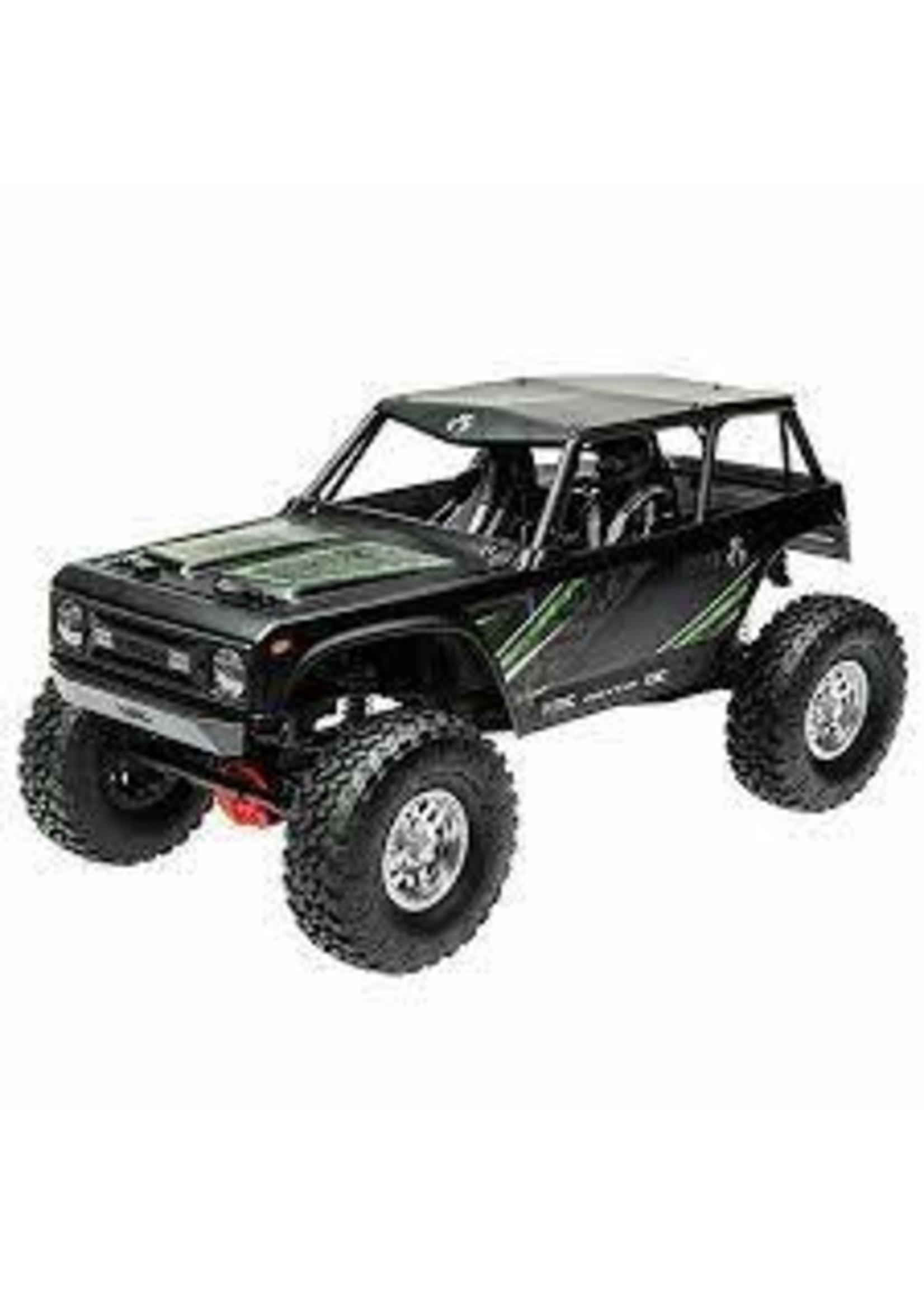

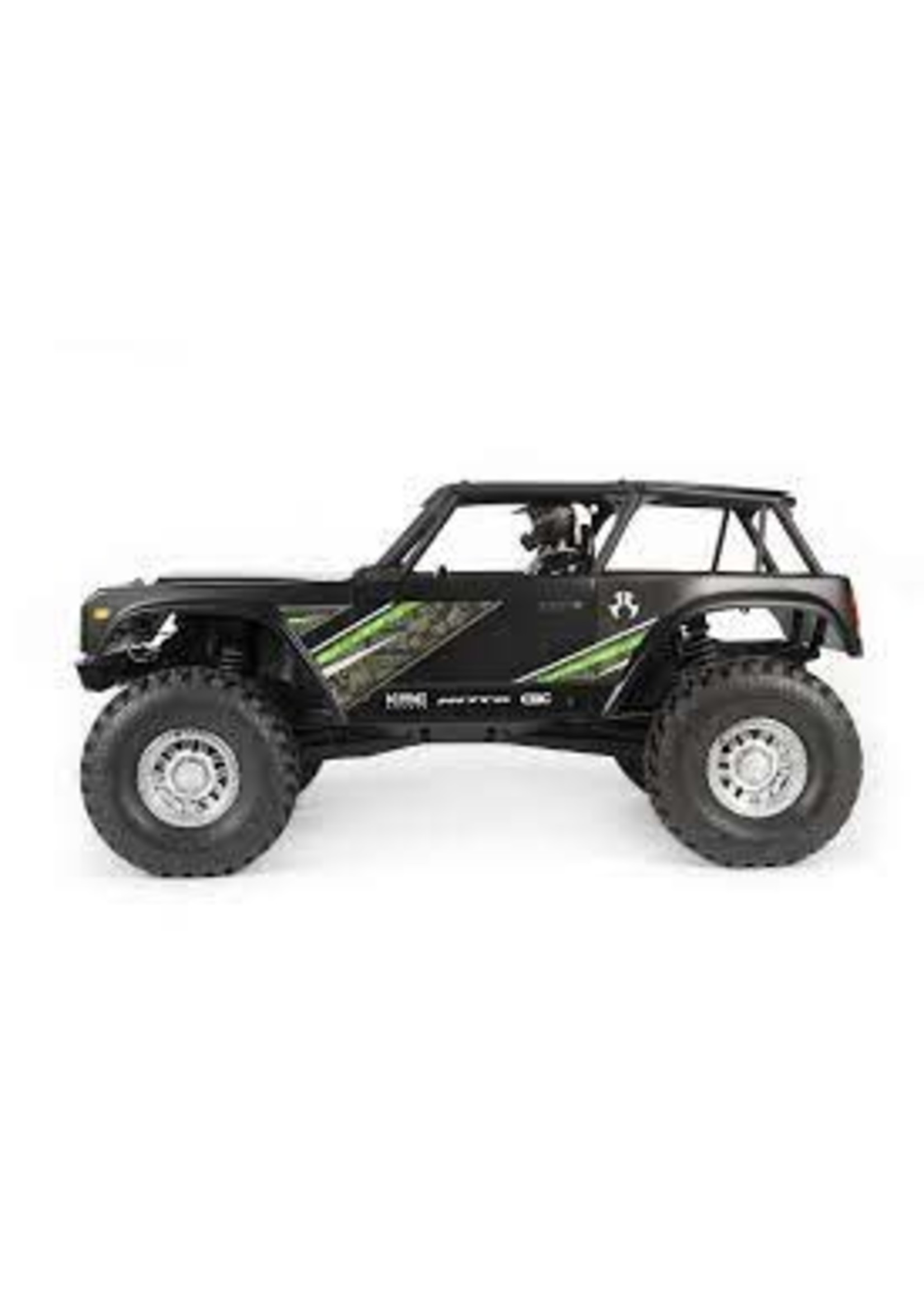

This is the Axial Wraith 1.9 1/10 Scale Electric Powered Ready-To-Run 4WD Rock Crawler. Axial enthusiasts have come up with several scratch-built methods to give Wraith 2.2 rigs smaller wheels for closer-to-scale proportions. The Wraith 1.9 RTR, however, is the first and only one created by Axial designers specifically to deliver Wraith bashability and technical rock crawling capability while running on 1.9 wheels and tires. This vehicle expertly merges the original Wraith full tube chassis with the AR44 axles and AX10 transmission of the SCX10. Further adjustments, such as reducing skid plate and lower rail size, increase ground clearance enough to power over rocks, sand, mud, and any other kind of backyard bashing. The Axial Wraith 1.9 is a new, 1/10 scale, ready-to-run platform that delivers it all - with the exciting scale looks you want!
At its foundation the Axial Wraith 1.9 4x4 is the first full tube frame chassis in RC, providing the durability you need for aggressive action on tough terrain. Refining the proven 2.2 Wraith chassis design, Axial improved the ground clearance for this version by reducing the size of its skid plate and lower rails. Boatsides on the skid plate improve handling by helping the vehicle slip through and past obstacles.
Your battery mounts at the front of the chassis, for easy access and to provide the best weight distribution for aggressive climbing. For scale looks, Axial moved the servo off the top of the axle and onto the chassis - just as a full-size truck has its steering box located on the frame.

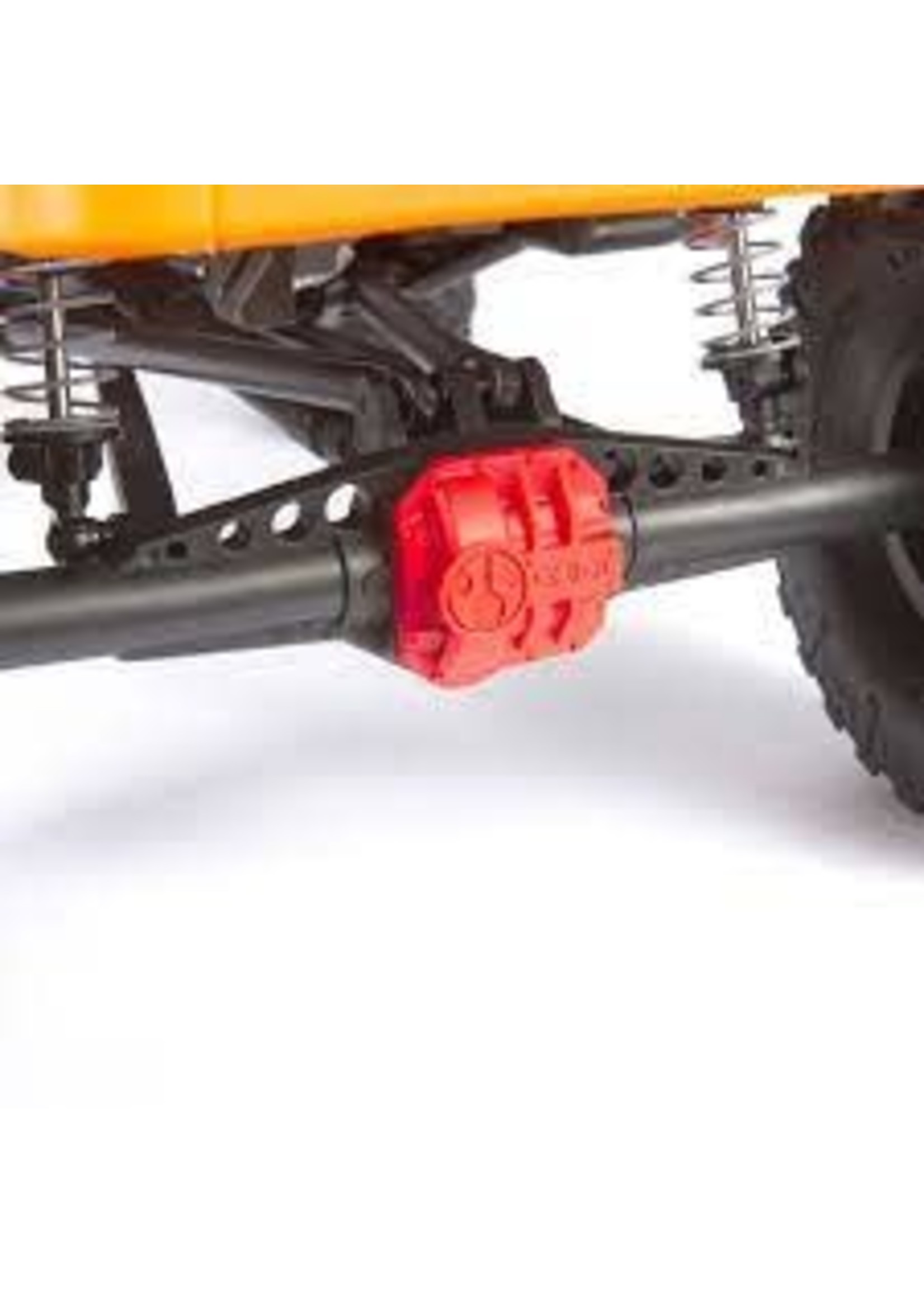

The Wraith 1.9 truck's drivetrain uses a powerful brushed 540 motor to turn its proven front and rear, single piece AR44 axles. The pinion gear is 6mm above center, raising the ground clearance and improving driveshaft angles. Axial boosts the overall strength with metal gear construction; large, flex-reducing load bearings; increased gear surface contact; and a gear ratio that's optimized to reduce torque twist.
Adjustable oil-filled, coil over shocks allow you to tune dampening for the best handling on any track. Molded from durable S30 compound, the officially licensed Nitto Grappler tires have a large block tread that gets excellent bite on a wide range of surfaces.
The Wraith 1.9 truck looks ready to climb mountains even when it's standing still. At the front end of its polycarbonate body you'll find a molded plastic grille, radiator detail, and two large, LED-equipped headlights. Raise the hood and you'll see a replica V8 engine tucked in front of the chassis battery mount. That V8 isn't just for show. It's also a rugged receiver box that guards the model's Spektrum SRX200 receiver from water, dust, and debris.
The Axial Wraith 1.9 RTR comes factory-assembled and requires only a battery pack with IC3 connector, compatible battery charger, and four AAs for the included Spektrum 2.4GHz transmitter. It's easy enough for new RC hobbyists, with the design sophistication to take experienced drivers on incredible adventures far beyond the end of the road.
Includes:
1x Axial Wraith 1.9 1/10 4WD RTR
1x Spektrum SRX200 Receiver (installed)
1x Tactic TSX45 Metal Gear Servo (installed)
1x Axial 35T Electric Motor (installed)
1x Dynamite Electronic Speed Control with Drag Brake (installed)
1x Spektrum STX2 Transmitter
1x Product Manual
Requires:
2-3 Cell LiPo or 5-9 Cell NiMH/NiCd battery with IC3/EC3 connector
Compatible battery charger
(4) AA Alkaline batteries
Features:
Strong tube chassis with forward-mounted battery position
Boatsides/skid plate for extra clearance
Chassis-mounted servo for a realistic look
Easy access to electronics, and adjustable battery tray
New body design with LED lights, and grille, radiator, fender, and V8 engine details
Spektrum Transmitter and Receiver
Licensed 1.9 Nitto Trail Grappler M/T tires on KMC XD229 Machete crawl wheels
Compact AX10 transmission
AR44 hi-pinion axles for added ground clearance
WB8 HD Wildboar driveshafts
Dual slipper clutch with 32-pitch gearing
4-Link rear suspension
Specs:
Approximate Assembly Time: No assembly required
Ball Bearings: Full set included
Batteries: One 2-3S LiPo battery with IC3 connector, or one 5-9 cell NiMH battery with IC3 connector, sold separately
Body: Molded polycarbonate with plastic grille and molded plastic inner fender wells
Charger: Compatible with selected battery (sold separately)
Chassis: Full tube frame constructed of high-strength impact resistant composite plastic, new chassis design moves battery tray to front for easier access and better weight distribution, new lower rails and skid plates are narrower for added clearance
Completion Level: Ready-To-Run
Differential: Bevel gear
Drivetrain: 4WD Shaft Drive
Final Drive Ratio: 42:1
Gear Pitch: 32-Pitch
Ground Clearance: 2.73" (69.4mm)
Height: 8.8" (223.3mm)
Internal Gear Ratio: 2.6:1
Length: 17.8" (451.6mm)
Motor Size: 540
Motor Type: 540 size, 35T brush equipped, integrated cooling fan
Pinion: 13T
Radio: Spektrum FHSS 2.4GHz STX2 2-ch with 3-position throttle limiter, steering & throttle rate and trim adjustments, high torque (151 oz-in) water resistant, dual ball bearing steering servo
Servos: Tactic TSX45 high-torque metal gear dual ball bearing steering servo
Shock Type: Clear coated polished aluminum body oil-filled King shocks with precision machined pistons, pre-load tuning and ride height adjustable
Size/Scale: 1/10
Speed Control: Dynamite AE-5L 3S capable Forward/Reverse with drag brake, switchable between LiPo & NiMH batteries with a jumper, LED light controller with headlight/ taillight outputs
Spur Gear: 56T
Suspension: Multi link solid axle 4-link, optimized to reduce axle steer and torque twist
Tire Compound: Sticky R35 firmness compound
Tire Diameter: Mounting Bead Diameter 1.9" (48.2mm), Outer Diameter 4.7" (119.4mm)
Tire Tread: Licensed Nitto Grappler aggressive large block tread design, foam inserts
Vehicle Type: 1/10 scale 4WD crawler
Water-Resistant: Yes
Weight: 4.65lb (2.1kg)
Wheel Diameter: 2.12" (53.9mm)
Wheel Hex Size: 12mm Hex
Wheel Type: KMC XD229 Machete
Wheel Width: 1.2" (26mm)
Wheelbase: 12.13" (308mm)
Width: 8.8" (223.3mm)
