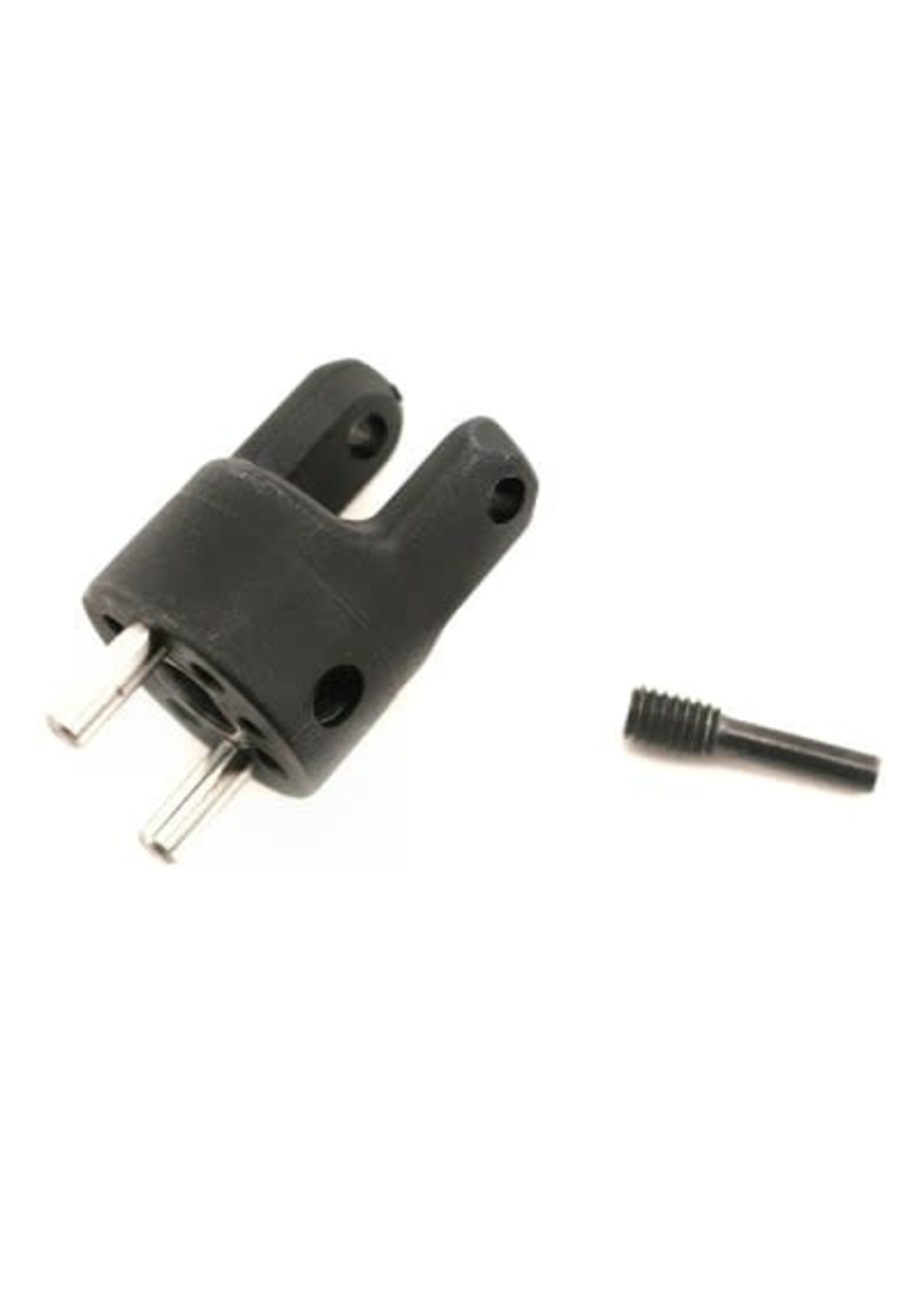

Traxxas brake yoke with pins for the Revo. It is for use on the center/front driveshaft assembly. Plastic brake yoke. Steel Brake Pins (each knurled on one end) Steel Screw Pins.
Available in store
CloseIncludes:
One Brake Yoke
Two Brake Pins
One Screw Pin
Specs:
Brake Yoke Outer Diameter: 18.5mm (.73")
Brake Yoke Center Key Size: 4mm x 6mm (.17" x .24")
Brake Yoke Length: 24mm (.95")
Screw Pin Size: 4mm x 15mm (Threaded length-5mm)
Brake Pin Size: 3mm x 20mm (.12" x .8")
Note: Brake Yoke Center is "keyed" to have a positive fit to the shaft.
